40-4429

Type: Linear Motion
Vendor: 80/20

Description:

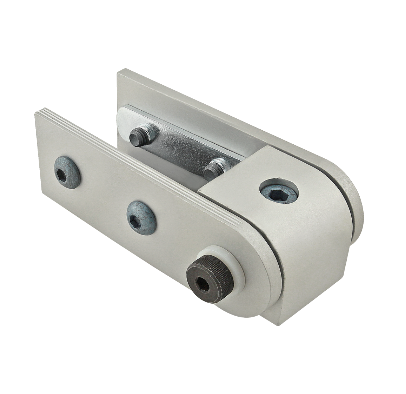

Right Angle 90 Degree Dynamic Pivot Assembly w/ Dual Straight Arms for 40 Series

Aluminum - Clear Anodized Finish

Comprised of:

1 ea. 40-4426 - 90 Degree Dynamic Right Angle Pivot Nub

2 ea. 40-4385 - Standard Straight Dynamic Pivot Arm

Typically used to create dynamic pivots that are perpendicular to the mounting profile and have full axial motion ranging from 0-90 degrees

It has permanently lubricated bronze bushings that act as high-strength pivot points and nylon thrust washers that protect the pivot arms

Offers a high load capacity while ensuring a long life cycle. A shim kit and all the mounting hardware is included

Weight: 1.006 Lbs.

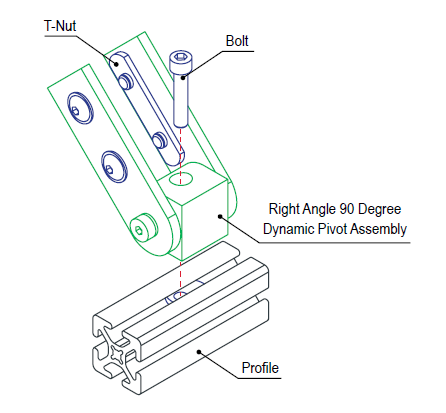

 Included Mounting Hardware:

Part No.  Qty   Mounting
75-3479   1
Nub to Profile
40-3500   1 Arms to Nub
75-3513   2 Arms to Profile
