40-6534 40-6534
40-6534

Type: Linear Motion
Vendor: 80/20

Description:

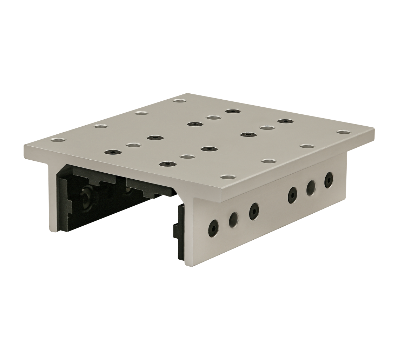

4 Slot Mount - Double Flange Long High-Cycle Linear Bearing w/ Brake Holes for 40 Series

Aluminum - Clear Anodized Finish

Is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing, capable of withstanding repetitive cycles with sudden acceleration and deceleration

It houses profiles with a minimum of four open T-slots, has a double flange and is a longer option

Includes bearing pads, screws and shims; the pads are made of self-lubricating UHMW

All 80/20 bearings are designed for compression loads only and not intended to support hanging loads



Weight: 1.805 Lbs.
