40-6866 40-6866
40-6866

Type: Linear Motion
Vendor: 80/20

Description:

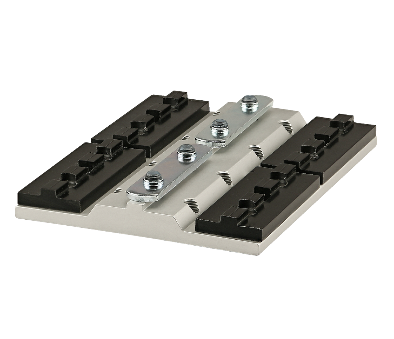

Double Long UniBearing™ for 40 Series

Aluminum - Clear Anodized Finish

Has an open design that enables customized layouts. An option that is commonly used in applications with two guardrails

Easy to quickly install or remove without taking apart, allowing reduced retooling and downtime and increased productivity and flexibility

The pads are mounted using stainless steel flathead socket cap screws that secure it to the housing and eliminate the need for high-cycle pads. Can move or be fixed; when fixed, it allows the guardrail and assembly to move

All UniBearings™ come with pre-drilled brake holes and tapped mounting holes that enable attachment of accessories to a flat surface



Weight: 1.314 Lbs.



Included Hardware (Mount to T-Slot):

Part No.  Qty   Description
13-8516   4
M8 x 16mm SHCS
40-1982   2 Double Slide-In Economy T-Nut
